Bed Innov8 Iq
Product Details

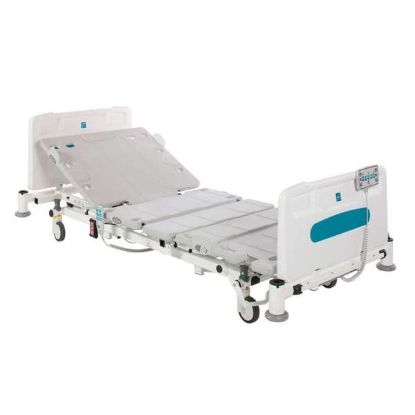

<h2 class="title"><span style="font-size:12pt">INNOV8 iQ Bed</span></h2><strong><span style="font-size:12pt">Product Description:</span></strong><span style="font-size:12pt">Developed with patient safety in mind, the INNOV8 iQ beds have been designed to meet the increasingly high demands of a modern hospital environment and satisfy the highest standards for safety and reliability. This versatile range of beds is ideal for use in general ward areas, specialist areas and for high dependent patients in CCU and HDU.
Models available with x-ray backrest option and a range of cantilevered or split side rails to help protect against the risk of falls, with the additional choice of integrated patient control panel within our split side rails.</span><strong><span style="font-size:12pt">Product Features:</span></strong><span style="font-size:12pt">Simultaneous operation of the cardiac chair and tilt functions combined with auto regression improves patient positioning, mobilisation and rehabilitation.
A choice of cantilevered or split side rails are available to suit both patient, carer and environment.
Optional split side rails lower to below the level of the mattress to help patients get in and out of bed easily, with self-lowering function for ease of use.
Optional integrated patient control panels for ease of use within our split side panels.
Smooth, electrically operated backrest, height and kneebreak (with battery backup)
Patient and carer/nurse handset operates the platform height, backrest and knee break movements.
Removable, blow moulded mattress platform panels for ease of cleaning.
Optional X-ray backrest available.
Integrated linen shelf built into the footend of the bed.
Extendable mattress platform length for taller patients (+20cm).
Easy to manoeuvre.
Removable head/foot ends with colour coding options.
Under-bed light illuminates the floor around the bed.
Maximum user weight 190kg (30st).
Battery back up is available as standard.
Easy access manual CPR handle with CPR mechanism. Electric CPR is located on the nurse handset.
Safe working load of up to 255kg (40st).</span><div class="ecatalog-branding"><div><label><strong>Knee Angle </strong>- </label>35</div><div><div class="ecatalog-branding"><div><label><strong>Product Warranty Info</strong> - </label>1 year full parts & labour + 2 years parts only</div><div><div class="ecatalog-branding"><div><label><strong>Safe Working Load</strong> - </label>255kg (40st)</div><div><div class="ecatalog-branding"><div><label><strong>User Weight Capacity</strong> - </label>190kg (30st)</div><div><div class="ecatalog-branding"><div><label><strong>X-ray Translucent </strong>- </label>Yes (option)</div><div><div class="ecatalog-branding"><div><label><strong>Night Light</strong> - </label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Infill Colour Options</strong> - </label>Aqua (standard) + Blue, Red, Green, Blue & Orange</div><div><div class="ecatalog-branding"><div><label><strong>Fowlers Position</strong> - </label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Auto Regression</strong> - </label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Auto Contour</strong> -</label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Manual / Electric CPR</strong> - </label>Yes / Yes</div><div><div class="ecatalog-branding"><div><label><strong>Cardiac Chair</strong> - </label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Bed Angle Indicators</strong> - </label>Yes</div><div><div class="ecatalog-branding"><div><label><strong>Patient / Nurse Controls</strong> - </label>Patient & Nurse Handset</div><div><div class="ecatalog-branding"><div><label><strong>Linen Shelf</strong> - </label>Yes</div><div><strong>Castors</strong> - 12.5cm (option of 15cm)</div><div> </div><div><h3 class="title">Dimensions - Bed:</h3><div class="ecatalog-branding"><div><label>Trendelenburg Angle -</label>13</div><div><div class="ecatalog-branding"><div><label>Reverse Trendelenburg Angle - </label>13</div><div><div class="ecatalog-branding"><div><label>Min Underbed Clearance - </label>15cm</div><div><div class="ecatalog-branding"><div><label>Bed Extension - </label>20cm</div><div><div class="ecatalog-branding"><div><label>Max Underbed Clearance - </label>80cm</div><div><div class="ecatalog-branding"><div><label>Underbed Clearance - </label>15-80cm</div><div><div class="ecatalog-branding"><div><label>Leg Section Adjustment Electrical - </label>Yes</div><div><div class="ecatalog-branding"><div><label>Leg Rest Angle - </label>21°</div><div><h3 class="title">Dimensions - Platform:</h3><div class="ecatalog-branding"><div><label>Platform Width - </label>88cm</div><div><div class="ecatalog-branding"><div><label>Platform Length when extended - </label>20cm added</div><div><div class="ecatalog-branding"><div><label>Platform Length - </label>200cm</div><div><h3 class="title">Specification - Weights:</h3><div class="ecatalog-branding"><div><label>Product Weight - </label>115kg</div><div><h3 class="title">Specification - Backrest:</h3><div class="ecatalog-branding"><div><label>Backrest Angle - </label>66°</div><div><div class="ecatalog-branding"><div><label>Backrest Adjustment Electrical - </label>Yes</div><div><h3 class="title">Specification - Battery:</h3><div class="ecatalog-branding"><div><label>Battery Back Up - </label>Yes</div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div></div>
