Light Slit Takagi Seiko Model Sm70n

Product Details

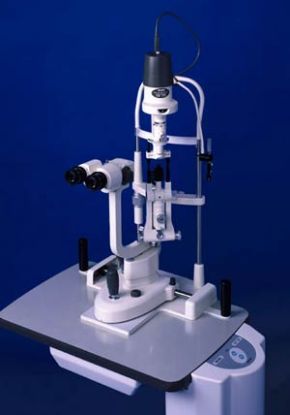

Takagi Seiko Slit Lamp - Model SM-70N - Gallilean Type


• Complete for table top mounting with headrest and transformer

• A Gallilean type microscope with a wide range of magnifications

• High quality, multicoated lens

• 5 step drum type magnification changer

• Light booster button also serves as a trigger for image capture when suitable device is fitted

• LED navigation for focussing on patient's individual eyes
• Reflecting mirror has been specially coated to reduce harmful infrared and UV light

• Sturdy and stable chin rest.
Specifications:

• Type: Gallilean type converging binocular microscope

• Magnifications: 6.3x, 10x, 16x, 25.6x, 40x

• Interpupillary adjustment: 52mm to 82mm

• Slit width: 0 - 10mm continuously variable

• Slit length: 1 - 10mm continuously variable

• Apperture Diaphragms: 10mm, 5mm, 3mm, 2mm, 1mm and 0.2mm

• Lamp: 12v 30w halogen bulb

• Power consumption: 40VA

• Base size: 359mm x 328.5mm

• Weight: 13.3kg.
